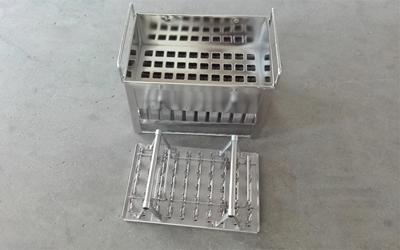

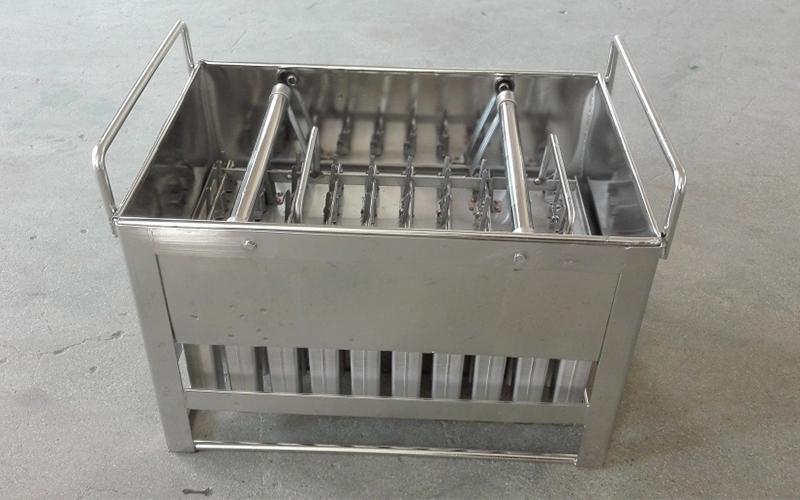

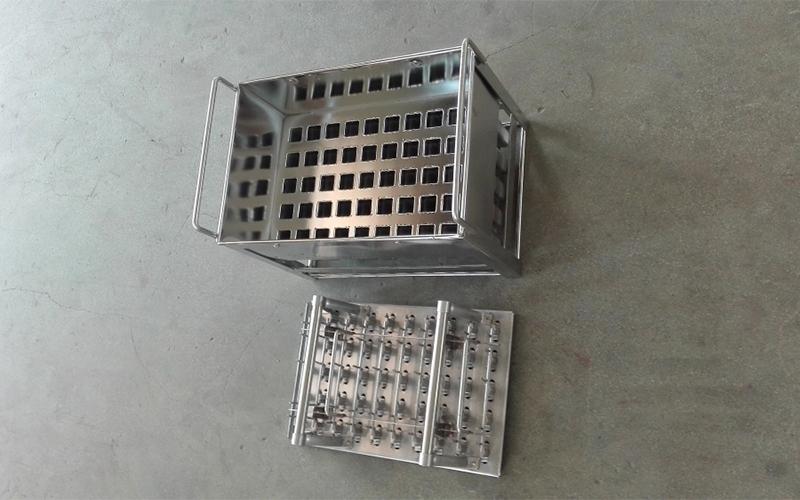

5×10 Manual Frozen Ice Cream Equipment Stainless Steel Ice Pop Mold

This stainless steel ice pop mold is suitable for use in small ice cream production equipment to allow small ice cream factories to carry out mass production of different ice cream and popsicle flavors.

In addition to a complete array of existing mold specifications, we can customize different manual line molds according to customer requirements.

Custom specifications: 3×10, 3×8, 4×10, 5×10, and more

Minimum order quantity: 50 sets/shape

Materials of stainless steel ice pop mold
1. Panel
Material: stainless steel 304
Thickness: 2.0mm

2. Mold cup
Material: stainless steel 304
Thickness: 0.8mm

Features
1. The stainless steel ice pop mold uses a welding robot in order to complete all welding, and utilizes a TIG welding process so that the resultant molds feature an even welding seam.

2. The mold's surface is treated using an electropolishing process (electrolysis), ensuring the surface is smooth with no tool marks, thus meeting European quality standards.

3. The main material used is 304 stainless steel, which meets food hygiene standards.

4. The mold cup is formed through a single stamping process that requires no annealing or chemical treatments, while still guaranteeing a uniform thickness of the entire mold cup.

5. The mold cup volume is designed and calculated using a computer, then cut using laser cutting equipment in order to guarantee the size accuracy.

About Hongtai
Yongkang Hongtai Hardware & Machine Factory has more than 35 years of experience in manufacturing ice cream molds. Backed by this experience, we have created more than 1200 different mold types in various shapes and sizes, and have worked with internationally known names such as Tetra Pak, Nestle, WCB and Unilever.

Hongtai undertakes an individual, comprehensive quality inspection of the molds to ensure a smooth surface, accurate size, and outstanding electropolishing. We also confirm that every mold meets food hygiene standards through strict sanitary inspection, with the welding quality confirmed using a leak test that utilizes a penetrating agent. Quality control test certificates are available based on customer requirements, including volume control data sheets, chemical and physical analysis test certificates, dimensional tolerance and penetrating agent leak test datasheets.

Index
Ice Cream Mold, Stainless Steel Mold, Ice Cream Bar Mold, Ice Lolly Mold
