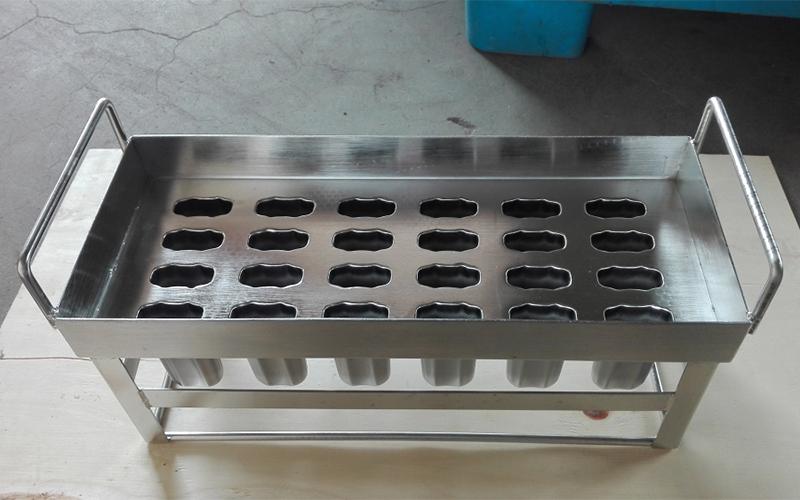

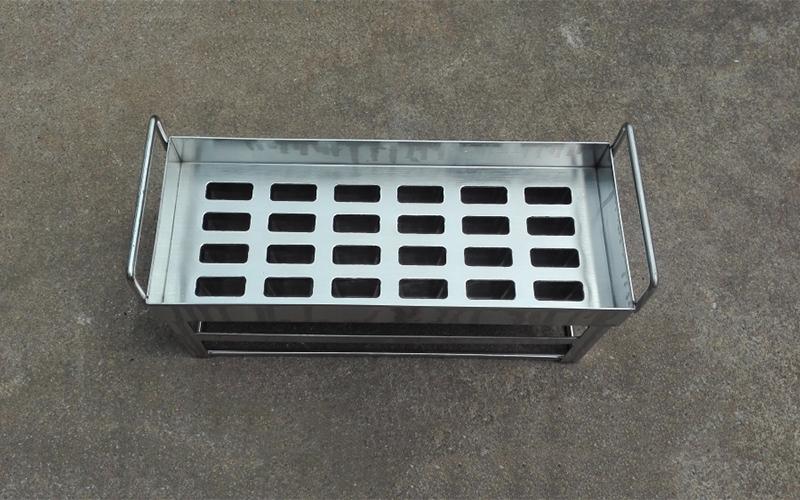

4×6 Manual Frozen Ice Cream Equipment Stainless Steel Popsicle Mold

The stainless steel popsicle mold features a small size, making it suitable for use in small ice cream production equipment to facilitate mass production of ice creams and popsicles in small ice cream factories and shops. In addition to standard mold specifications, we can customize each mold in different shapes and sizes to meet specific customer requirements.

Customizable specifications: 4×6

Minimum order quantity: 50 sets/shape

Popsicle mold materials
1. Panel
Material: stainless steel 316L
Thickness: 2.0mm

2. Mold cup
Material: stainless steel 316L
Thickness: 0.8mm

1. The stainless steel popsicle mold uses a welding robot to complete all welding. This welding robot uses a TIG welding process, ensuring molds are completely welded with an even welding seam.

2. The mold is surface treated using an electropolishing (electrolysis) process to ensure the surface is smooth with no tool marks, thus meeting European quality standards.

3. The main mold material is 316L stainless steel. This stainless steel features an outstanding toughness, as well as excellent corrosion resistance and hardness.

4. The mold cup is formed using a single stamping process that requires no annealing or chemical treatments, while still ensuring the constant thickness of the entire mold cup.

5. The mold cup's volume is designed and calculated using a computer, and cut using laser cutting equipment in order to ensure the size accuracy.

About Hongtai
Yongkang Hongtai Hardware & Machine Factory has more than 35 years of experience in manufacturing ice cream molds. Backed by this experience, we have created more than 1200 different mold types in various shapes and sizes, and have worked with internationally known names such as Tetra Pak, Nestle, WCB and Unilever.

Hongtai undertakes an individual, comprehensive quality inspection of the molds to ensure a smooth surface, accurate size, and outstanding electropolishing. We also confirm that every mold meets food hygiene standards through strict sanitary inspection, with the welding quality confirmed using a leak test that utilizes a penetrating agent. Quality control test certificates are available based on customer requirements, including volume control data sheets, chemical and physical analysis test certificates, dimensional tolerance and penetrating agent leak test datasheets.
